SCREEN MACHINE DEVELOPER KIT


SMKit_2

The Developer Kit allows the easy creation of VIDEO applications for the SCREEN MACHINE II(TM). It gives access to all SCREEN MACHINE functions and because it is written with objective C-classes, it integrates well with the NeXT environment. Palettes, an NXLiveVideoView compatible class, and detailed manuals with programming examples are included. One year free up-dates and support.

Objective-C Classes
A full set of classes support the complete functionality of the board. Included are View and Window classes as well as ImageReps for the YUV Image format of the Screen Machine. Backwards compatibility for programs developed for the NeXT Dimension board is ensured through SMLiveVideoView class.

SMPalette
It allows the easy development of live-video applications and operates under the InterfaceBuilder test mode.

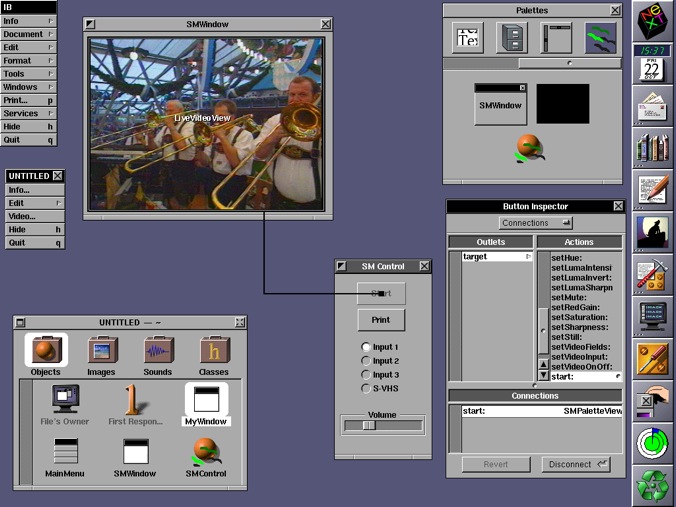

ScreenShot

Examples
Ample examples demonstrate the possible uses of the Screen Machine. They are also a quick start for every developer, as most of the code is readily useable for their programs.

Documentations
140 pages of detailed documentation describe everything, from the basics of video and the specifics of the board to an extended explanation of all the SMKit classes. Tutorials based on the examples are a step by step introduction to the capabilities of the board.

SM Dev Kit Literature Front
SM Dev Kit Literature Back

VDO_DevKit_Reference_Manual

PRICE
$998.00
